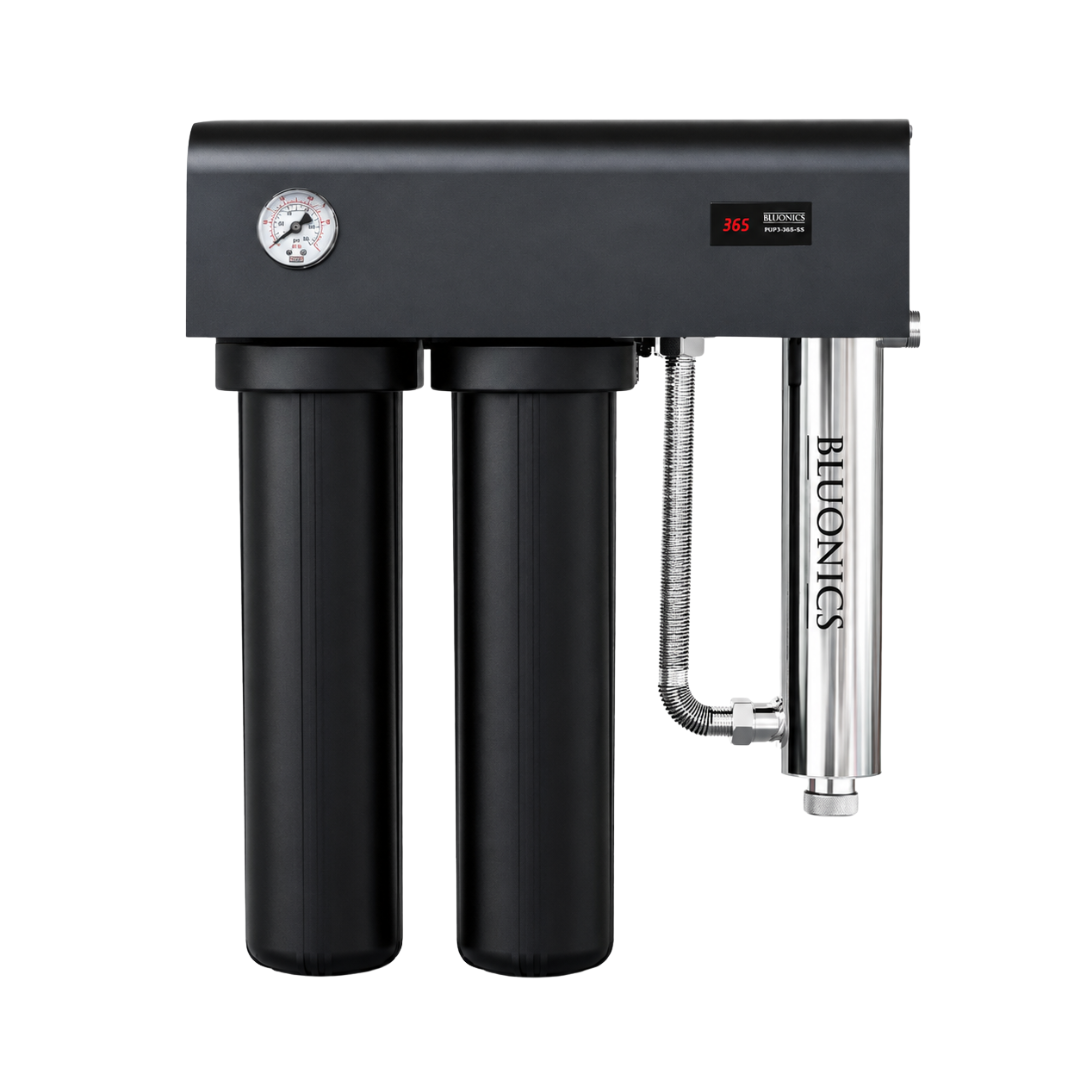

BLUONICS PRO Series Whole House Well Water Filtration System – Compact All-in-One Design with Dual 20” Filters, 48W UV Light, Pressure Gauge & Countdown Ballast

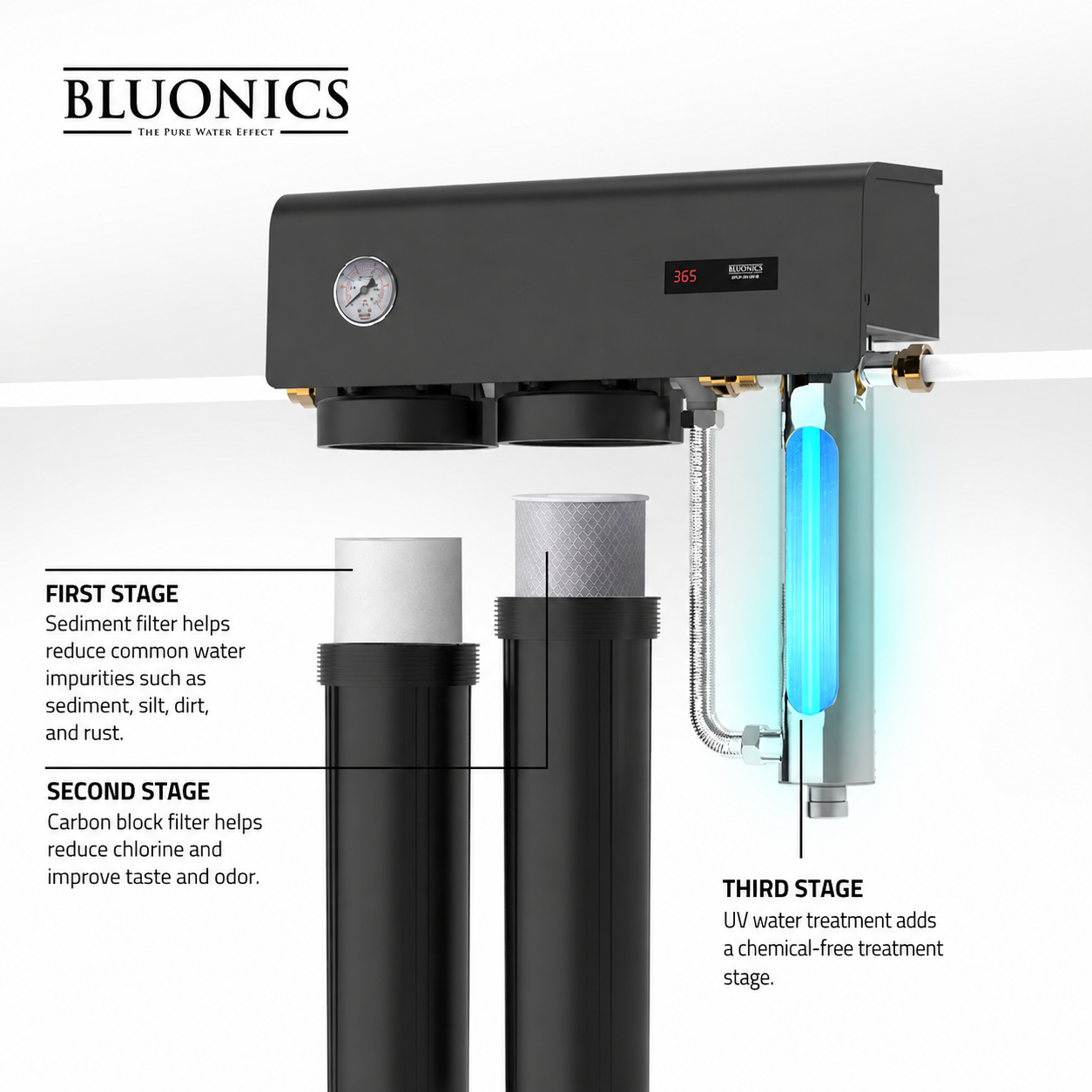

THREE-STAGE WHOLE HOUSE WATER TREATMENT
Combines a 5-micron pleated sediment filter to reduce silt, dirt, and rust, a carbon block (CTO) filter to improve taste and odor, and a high-output UV light system designed for advanced, chemical-free water treatment.

PRO SERIES PROFESSIONAL CONSTRUCTION
Built with upgraded components including SUS 304 stainless steel UV chamber, quartz sleeve, brass inlet and outlet connections, pressure gauge, and a digital ballast with 365-day countdown and delay timer for dependable long-term operation.

HIGH-CAPACITY PERFORMANCE FOR WELL OR CITY WATER
Designed to support whole-house flow rates up to 12 GPM (85 LPM) at optimal conditions. Operating pressure range of 4–100 PSI with minimal pressure loss when properly installed.

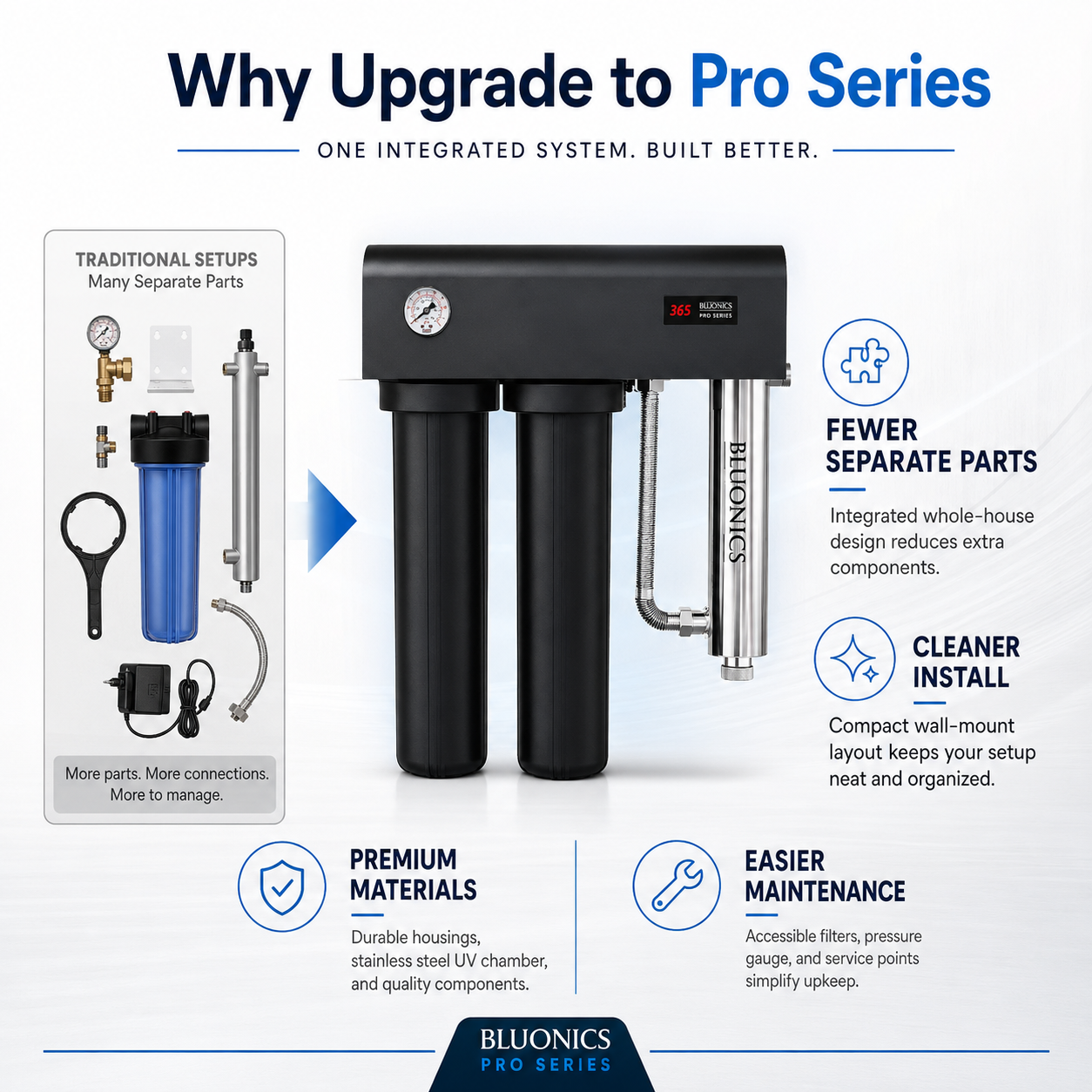

FULLY PREASSEMBLED ALL-IN-ONE DESIGN

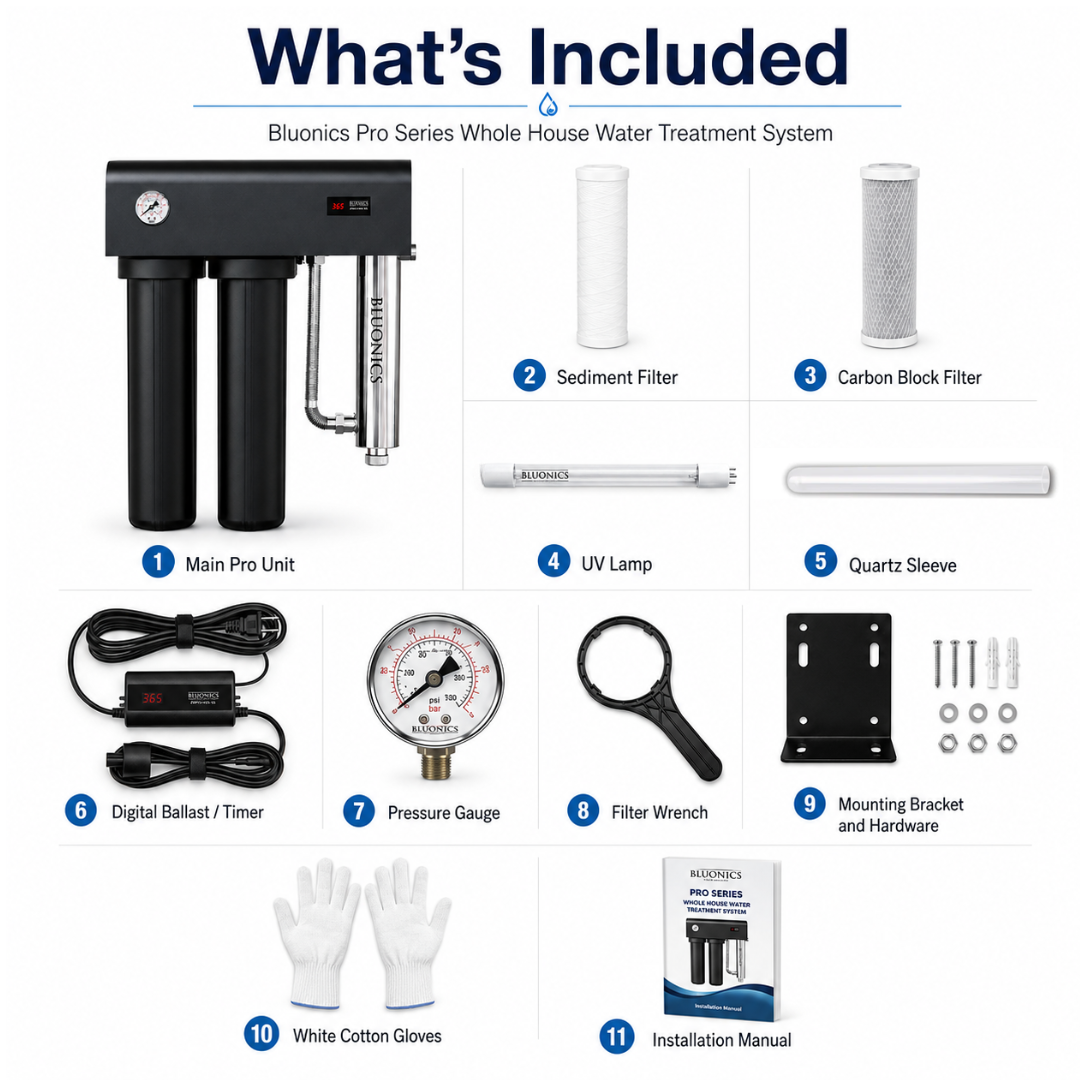

System arrives factory-assembled with dual 20” solid filter housings and UV chamber mounted on a sleek top frame with protective cover. No separate component assembly required.

 EASY INSTALLATION & MAINTENANCE
Wall-mount bracket included for secure installation. Standard 20” filter cartridges allow quick replacement, and the UV lamp features a rated service life of 9,000 hours with clear status indicators for simplified servicing.

COMPACT ALL-IN-ONE DESIGN

Space-saving wall-mounted configuration delivers professional-grade water treatment without sacrificing performance, ideal for residential well water and city water applications requiring reliable filtration and sterilization

Technical Highlights:

• UV Lamp Power: 48W
• Max Power Consumption: 63W
• Max Flow Rate: 85 LPM / ~12 GPM (at 16 mJ/cm², 95% UVT)
• Electrical: 100–240V AC, 50/60Hz
• UV Chamber Material: SUS 304 Stainless Steel
• Inlet / Outlet: 1” NPT
• Operating Pressure: 4–100 PSI
• Ambient Temp: 2–50°C
• Lamp Life: 9,000 hours
• UVT Requirement: ≥75%
