Bluonics 55W Smart Flow Switch UV Ballast | 100-120V Replacement Electronic Ballast with 30-Minute Delay Timer, LED Indicator & Audible Alarm
✔ Trusted by 200,000+ U.S. homeowners
✔ Over 10 years of proven water filtration experience

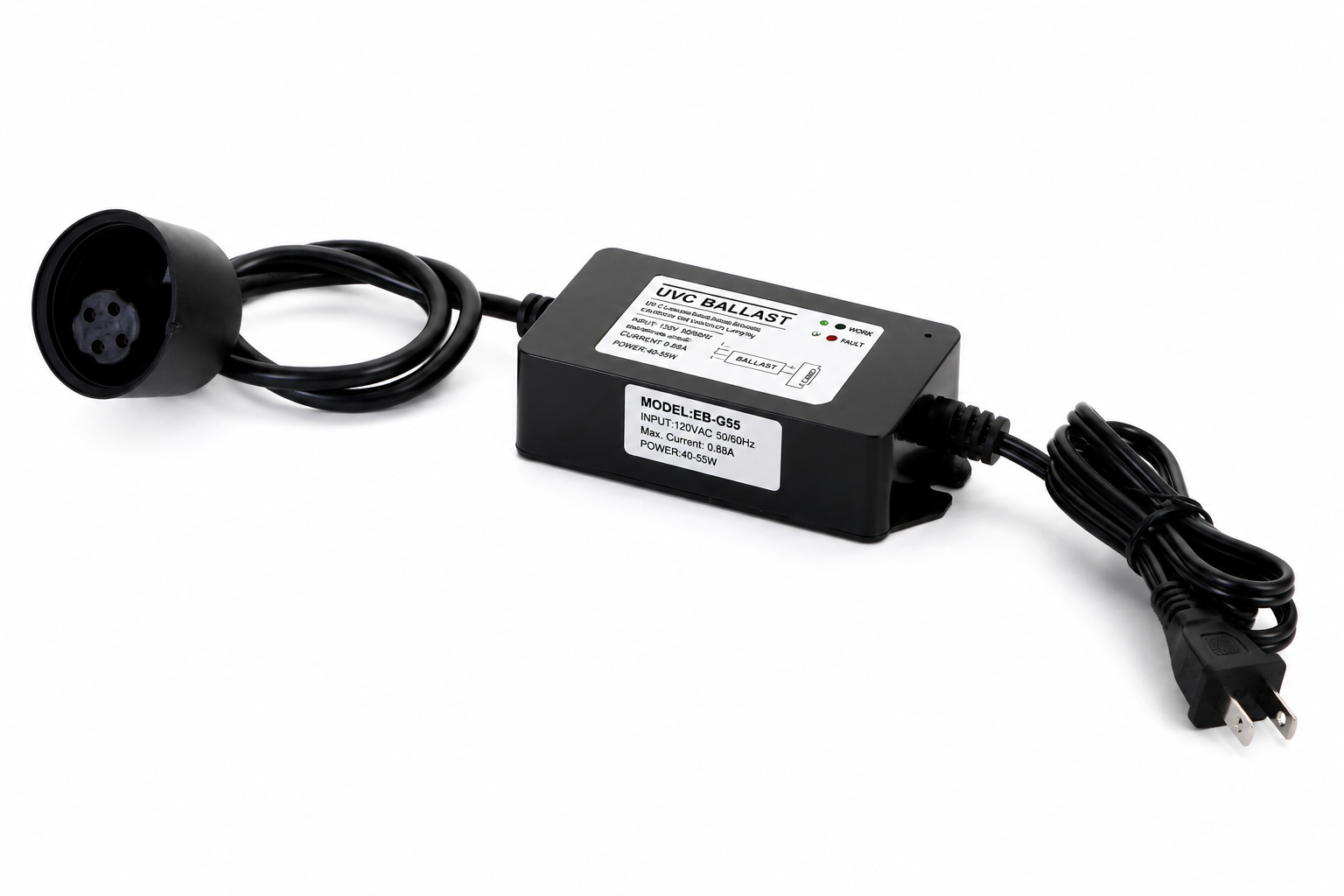

Smart Replacement Ballast for Bluonics 55W UV Water Systems
Upgrade your compatible Bluonics UV water treatment system with our latest Smart Flow Switch UV Ballast. Unlike conventional UV ballasts that operate continuously, this intelligent controller automatically powers the UV lamp only when water is flowing through the system.
Once water flow stops, the ballast continues operating the UV lamp for approximately 30 minutes, helping complete treatment of the water remaining inside the UV chamber before automatically shutting down. This smart operation helps extend UV lamp life while reducing unnecessary energy consumption.
The ballast also features green and red LED status indicators, an audible alarm, and an integrated flow sensor for reliable system monitoring.

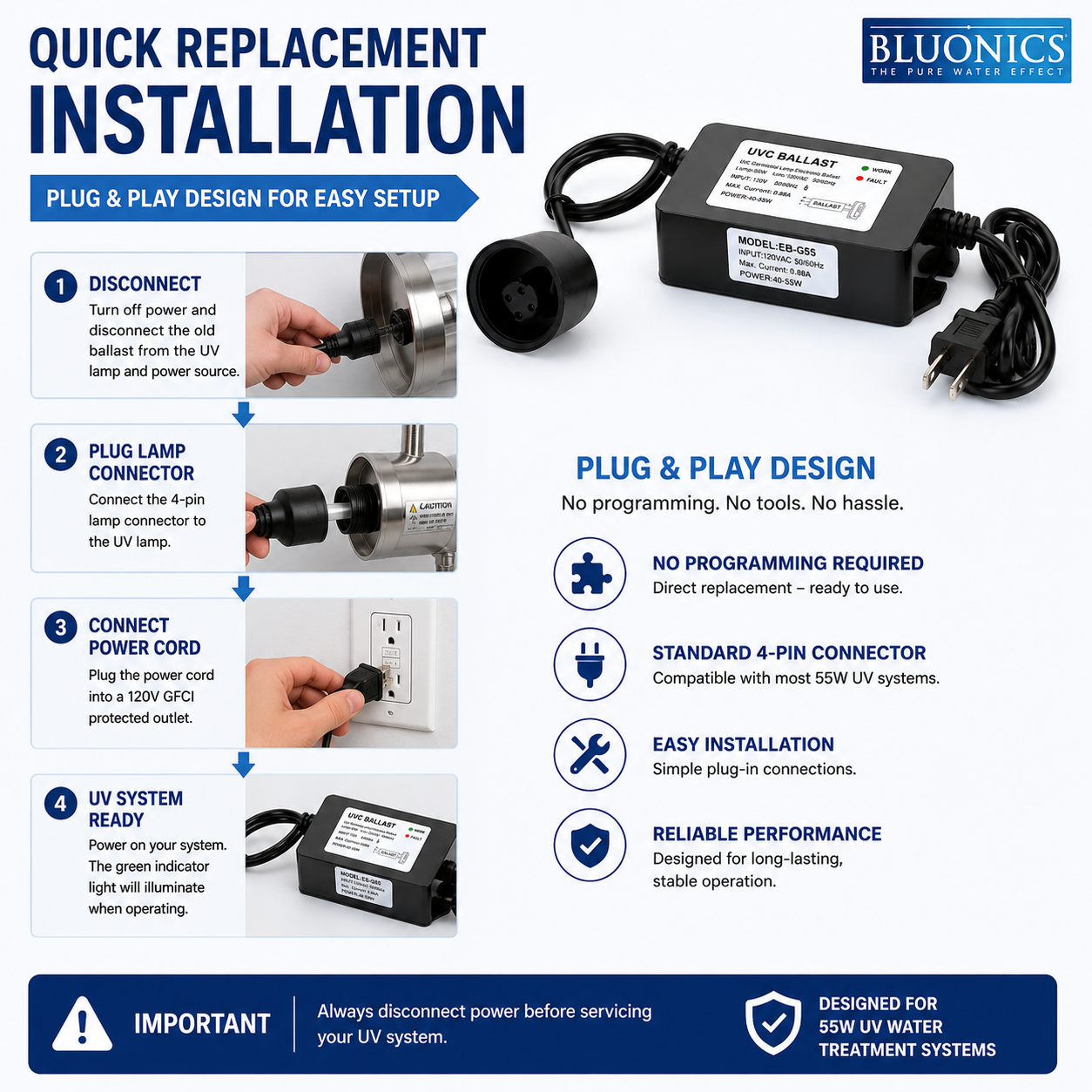

Designed for easy replacement, it uses a standard 4-pin UV lamp connector and includes long power cords for flexible installation.
Features
- Smart flow-activated operation
- Automatic 30-minute delay timer
- Integrated water flow sensor
- Green & red LED status indicators
- Audible alarm for lamp and system monitoring
- Standard 4-pin UV lamp connector
- Compatible with Bluonics 55W UV systems
- Plug-and-play replacement
- Indoor installation
|

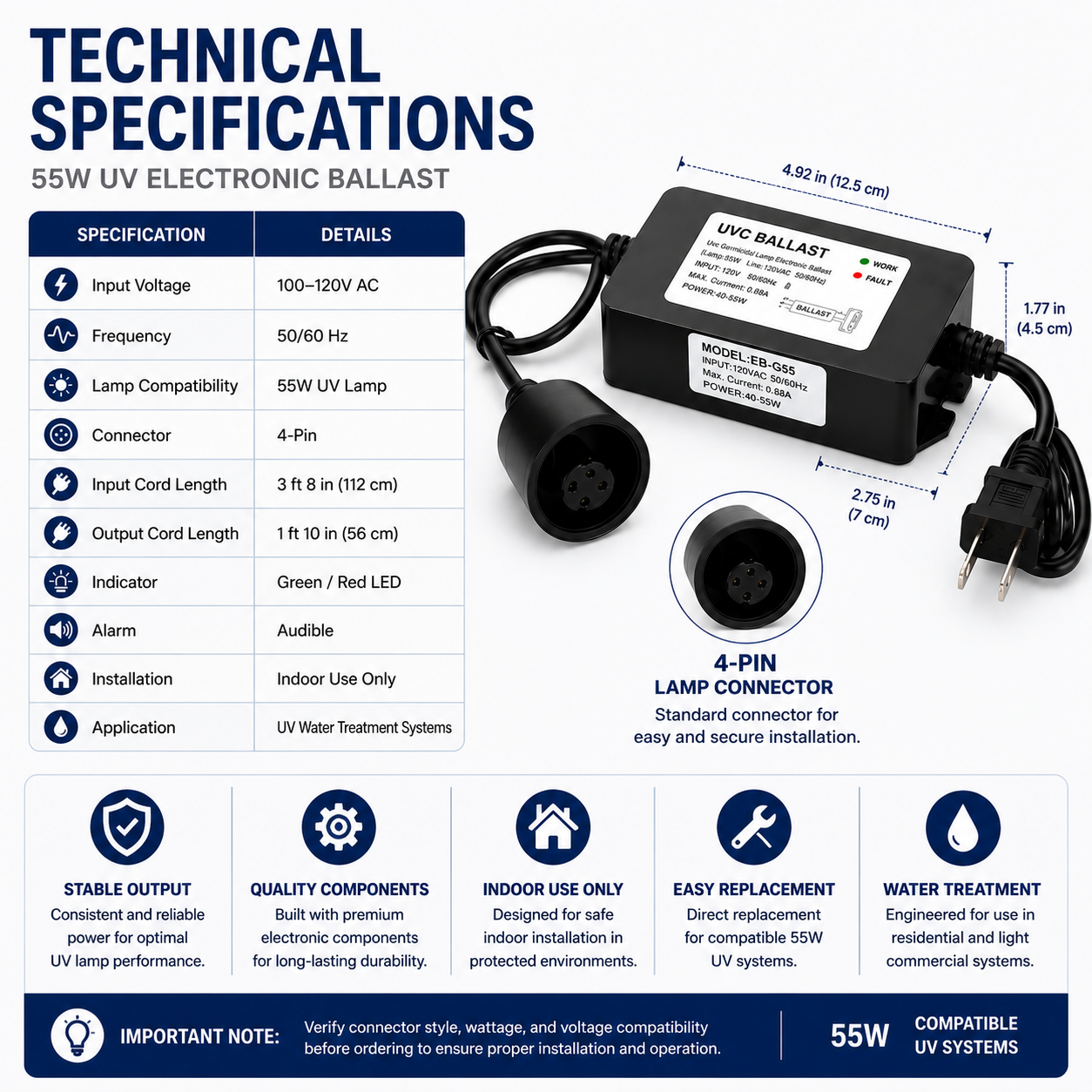

Specification |
Details |
|---|---|
|
Product Type |
Smart Flow Switch UV Replacement Ballast |
|
Compatible UV Lamp |
55W |
|
Input Voltage |
100–120V AC |
|
Frequency |
50/60 Hz |
|
Power Plug |
US Plug |
|
Lamp Connector |
4-Pin |
|
Flow Switch |
Integrated Automatic Flow Sensor |
|
Delay Timer |
30 Minutes After Water Flow Stops |
|
LED Indicators |
Green & Red Status LEDs |
|
Audible Alarm |
Yes |
|
Input Power Cord Length |
3 ft 8 in (112 cm) |
|
Output Lamp Cord Length |
1 ft 10 in (56 cm) |
|
Installation |
Indoor Use Only |
|
Compatible Systems |
Compatible Bluonics 55W UV Water Treatment Systems |
|
Package Includes |
1 × Smart Flow Switch UV Ballast |
|
Not Included |
UV Lamp, Quartz Sleeve, UV Chamber, Mounting Hardware |
New Updated design with indicator light and Audible alarm
- Compatible with Bluonics 12 and 24 GPM, 55W and 110W UV
- Voltage: 100-120V AC 50/60 Hz. Current: 40-55W
- Style: 4 Prong Connection for Bluonics UV Bulb
- Measurement: 3ft 8" Inlet cord , 1 ft 10" Outlet
- Replacement for Bluonics 55W and 110W UV units
